PRR 2D5P2 Trucks

$Description: Description: C:\Users\blane\Documents\3DModelTech Website\Button.gif$

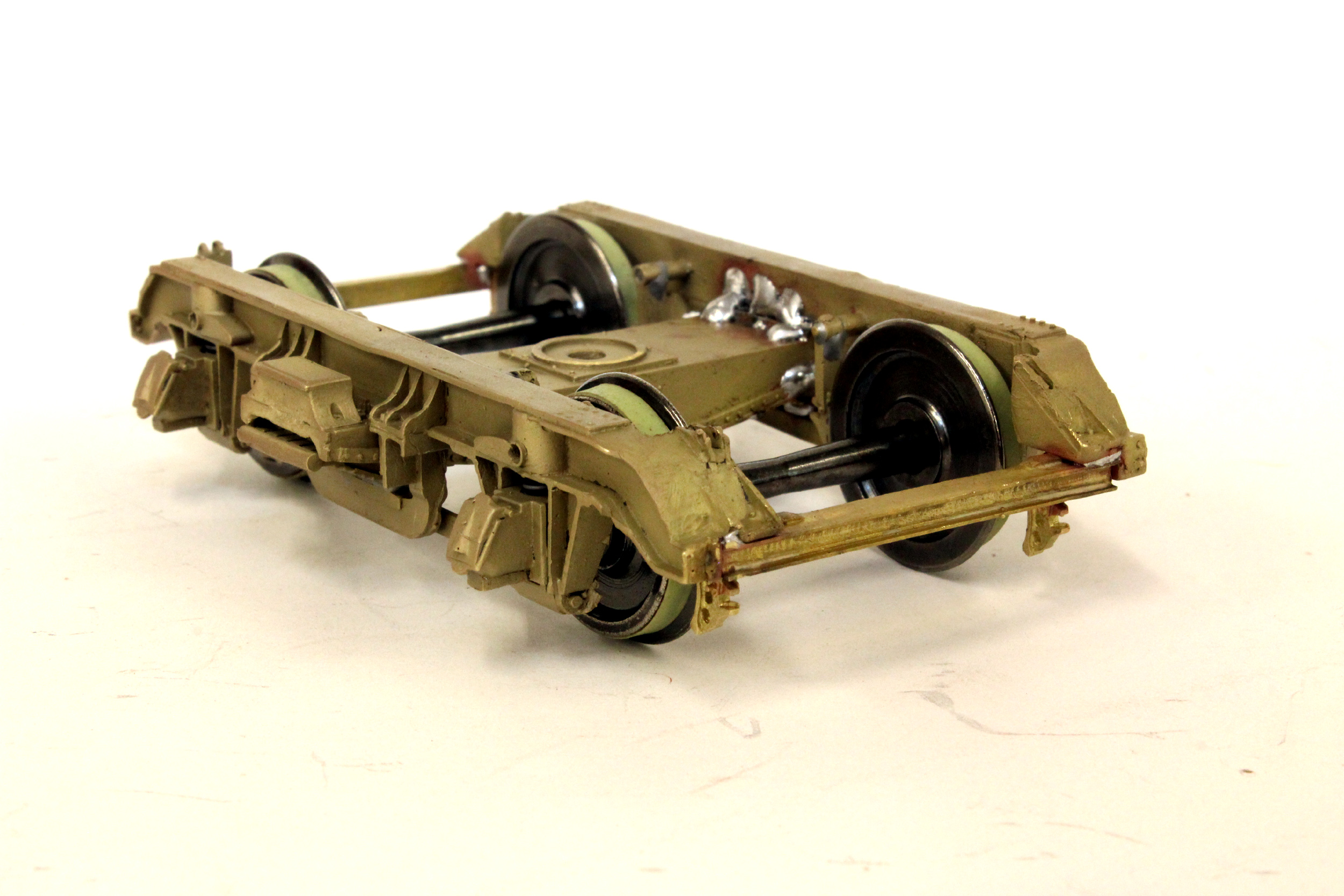

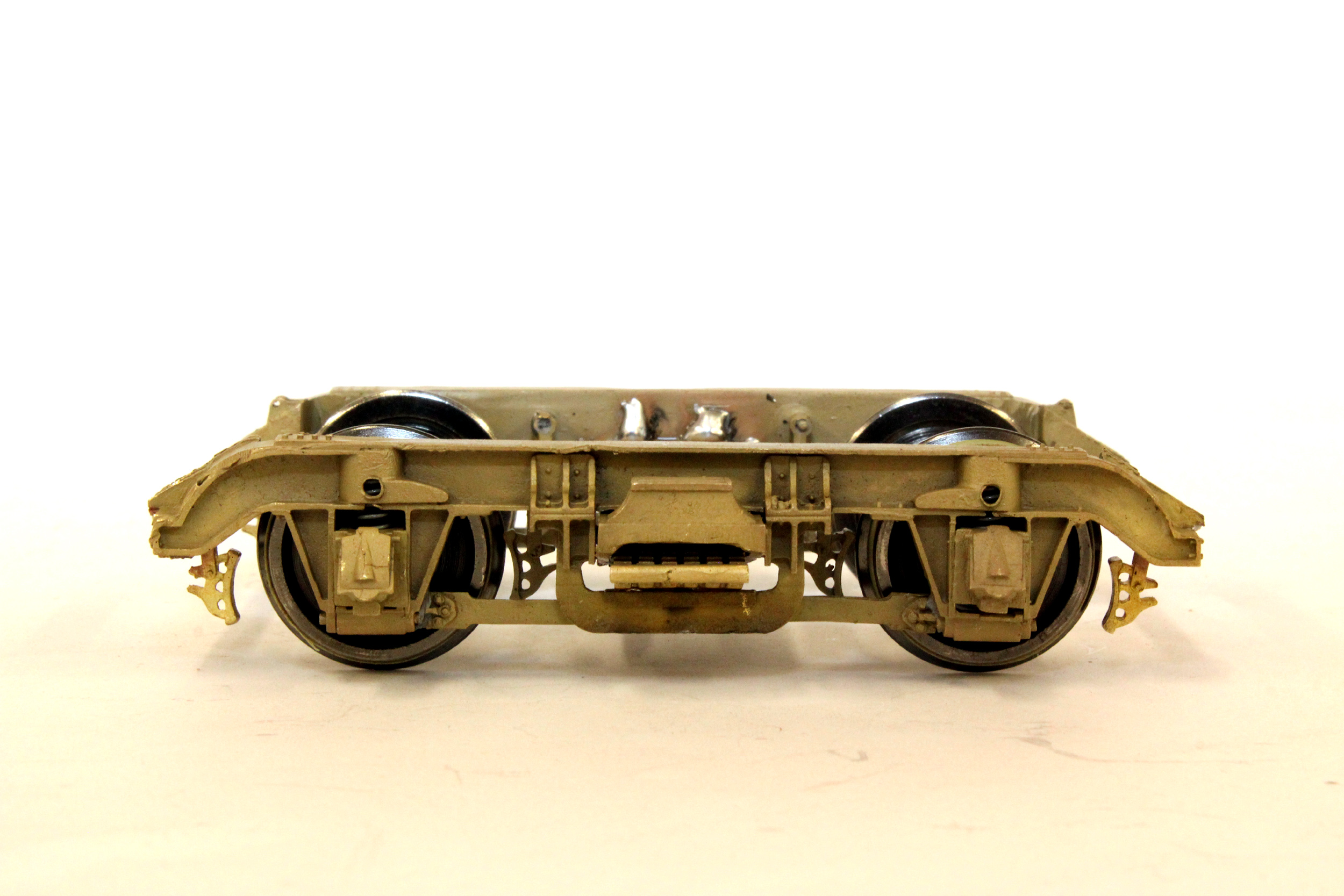

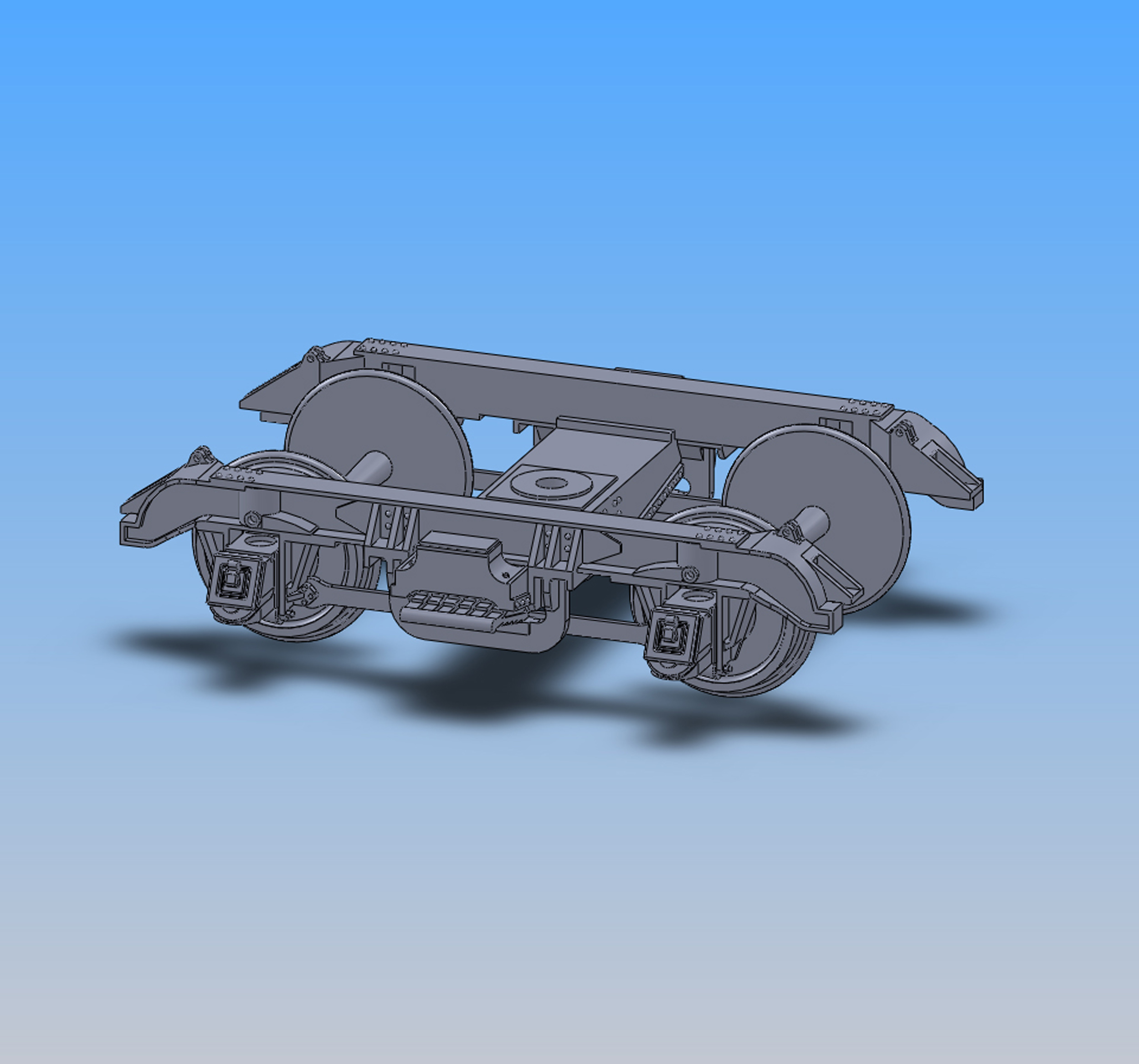

This truck came to me as an O Scale kit in 2015 to be assembled when I was doing train work for others. I insanely measured it and reverse engineered it with Solidworks in S Scale. I got 1 set made back then before the FORM1 printer died. I procrastinated to get molds made as that would have been about $500.00 alone without any parts getting cast. I have wanted more ever since then and is at least half the reason I am back in 3D printing - to make more of this truck. These photos are from 2015.

$Description: C:\Users\blane\Documents\3DModelTech Website\3D_Model_Tech_PRR_2D5P2_Truck_Photos\PRR_2D5P2_Truck_Photos_1 small.jpg$ $Description: C:\Users\blane\Documents\3DModelTech Website\3D_Model_Tech_PRR_2D5P2_Truck_Photos\PRR_2D5P2_Truck_Photos_2 small.jpg$ $Description: C:\Users\blane\Documents\3DModelTech Website\3D_Model_Tech_PRR_2D5P2_Truck_Photos\PRR_2D5P2_Truck_Photos_3 small.jpg$

I feel sure they would last as printed in gray resin with moderate use but I want to make them in brass for my PRSL P70. http://www.lanestrains.com/S_Scale_PRSL_P70_Coach.htm

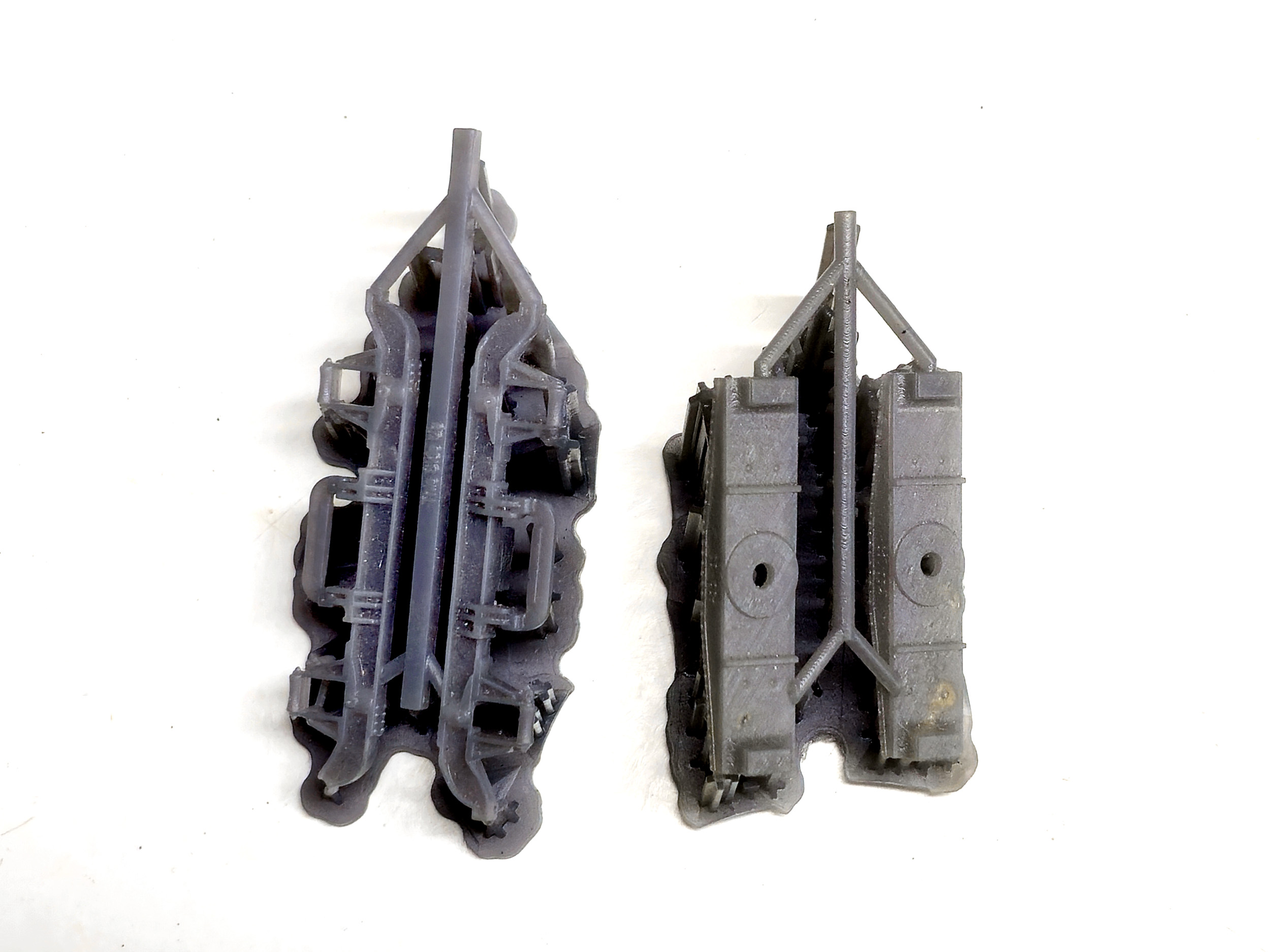

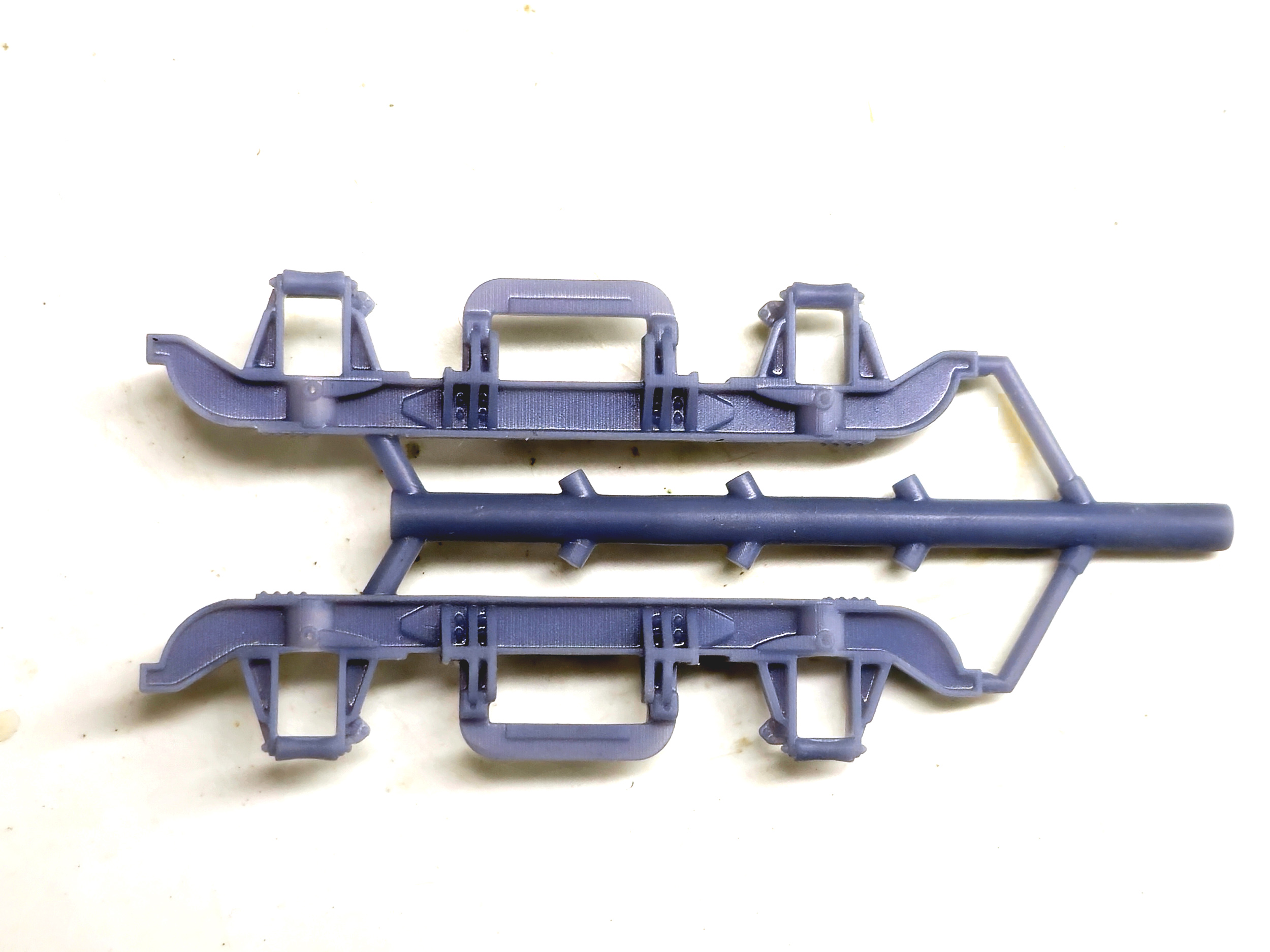

These are trees left over from the FORM1. Not bad or so I thought back then. The supports were difficult to remove.

$Description: C:\Users\blane\Documents\3DModelTech Website\3D_Model_Tech_PRR_2D5P2_Truck_Photos\PRR_2D5P2_Truck_Photos_4 small.jpg$

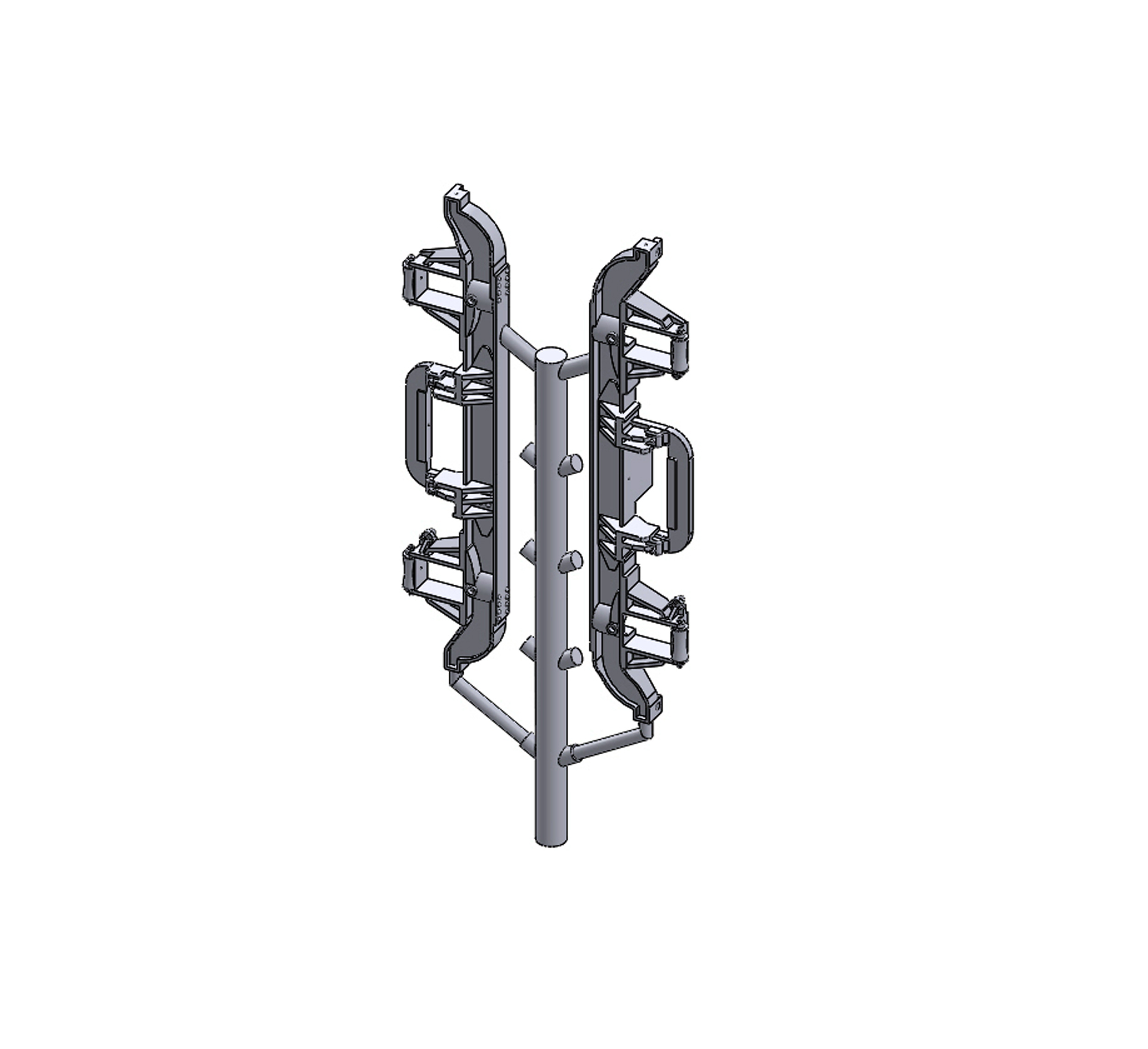

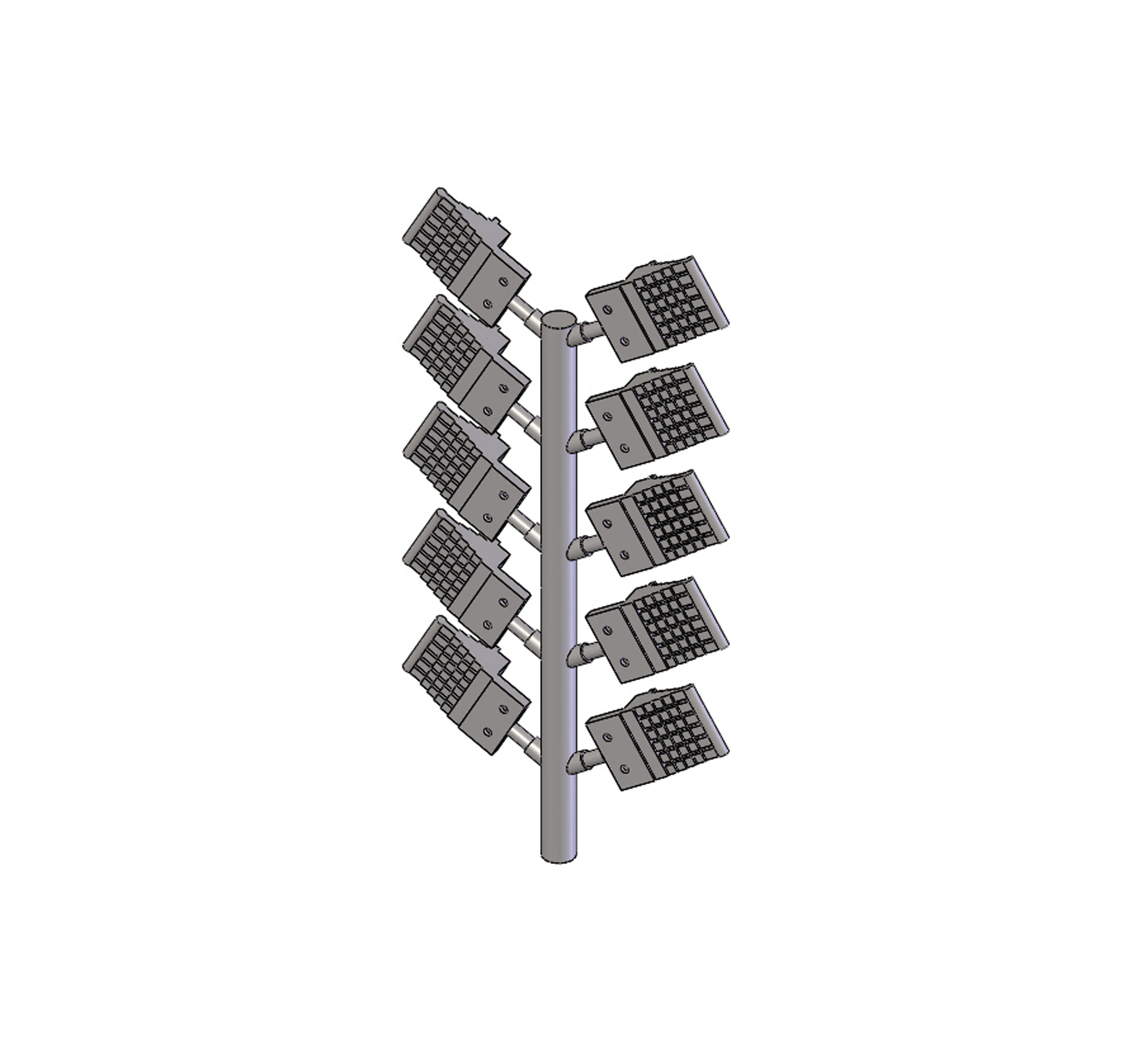

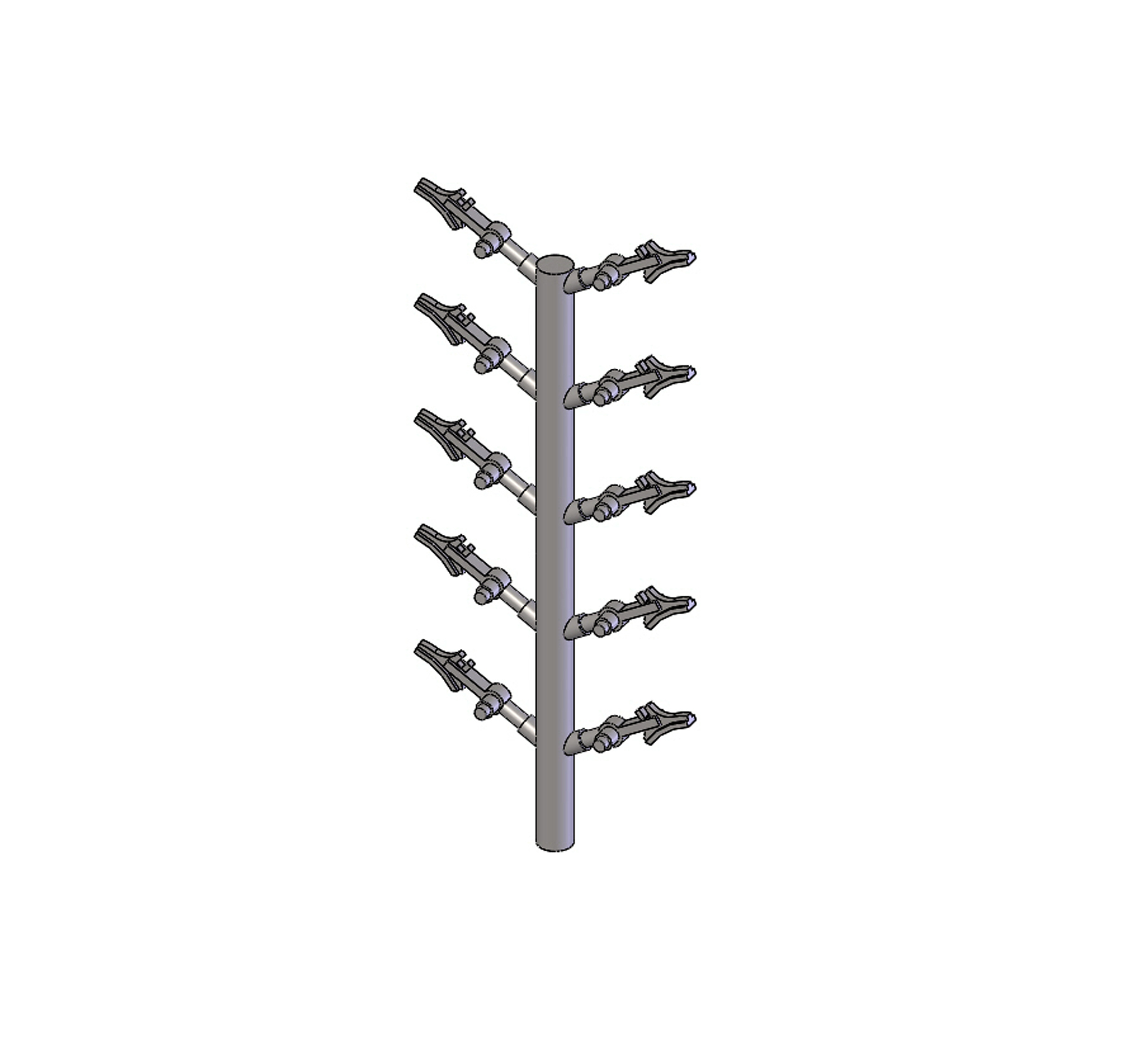

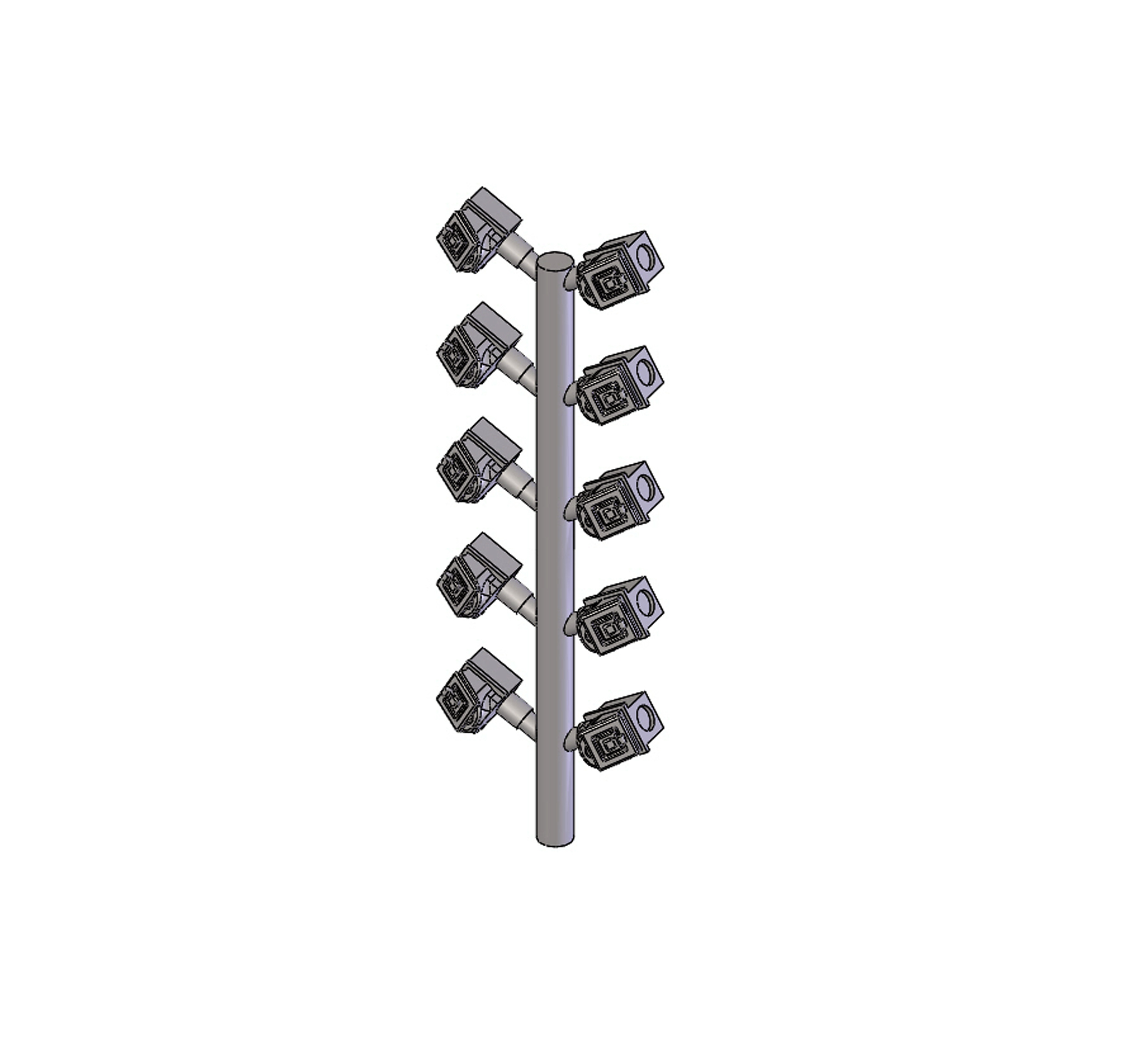

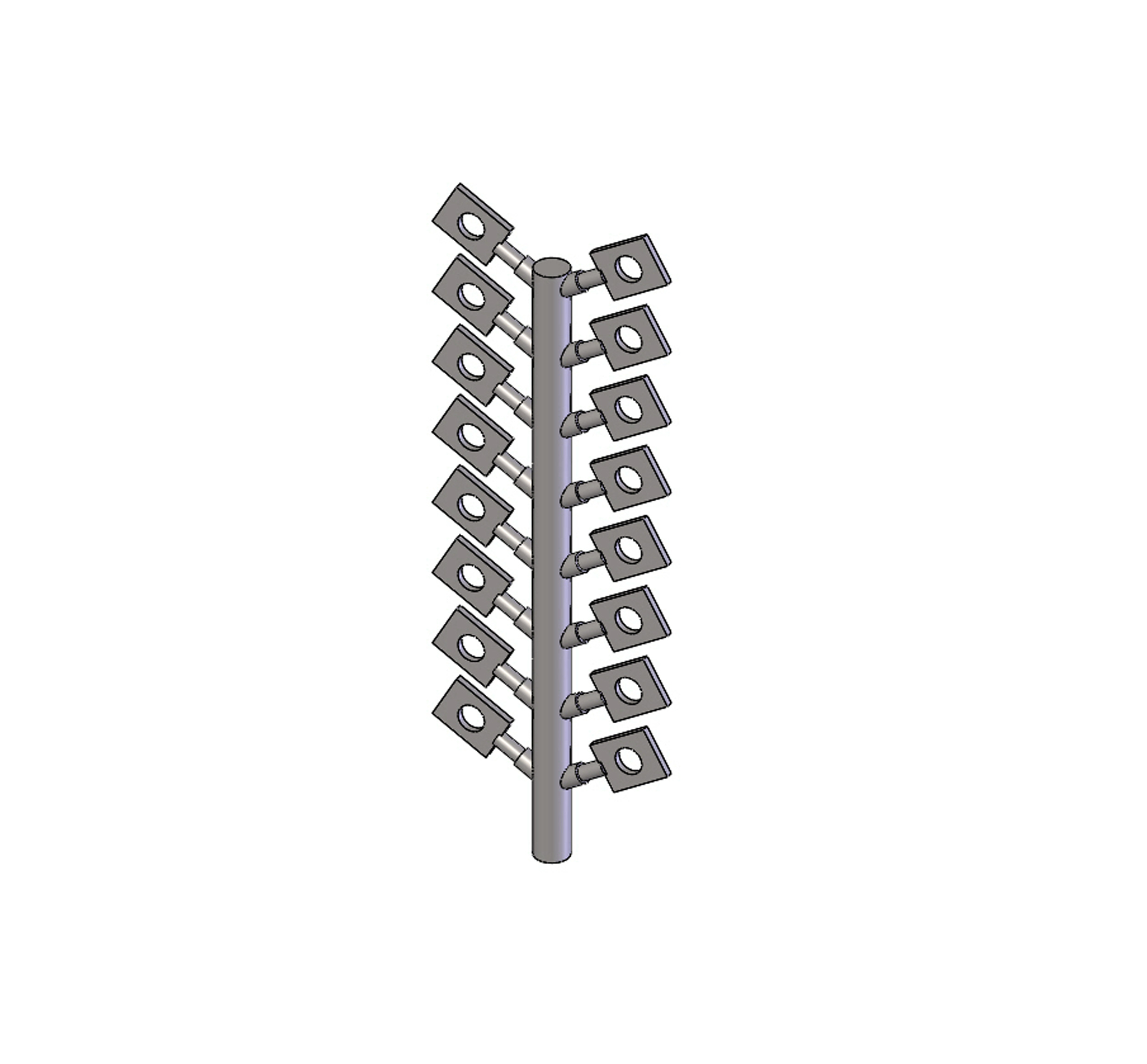

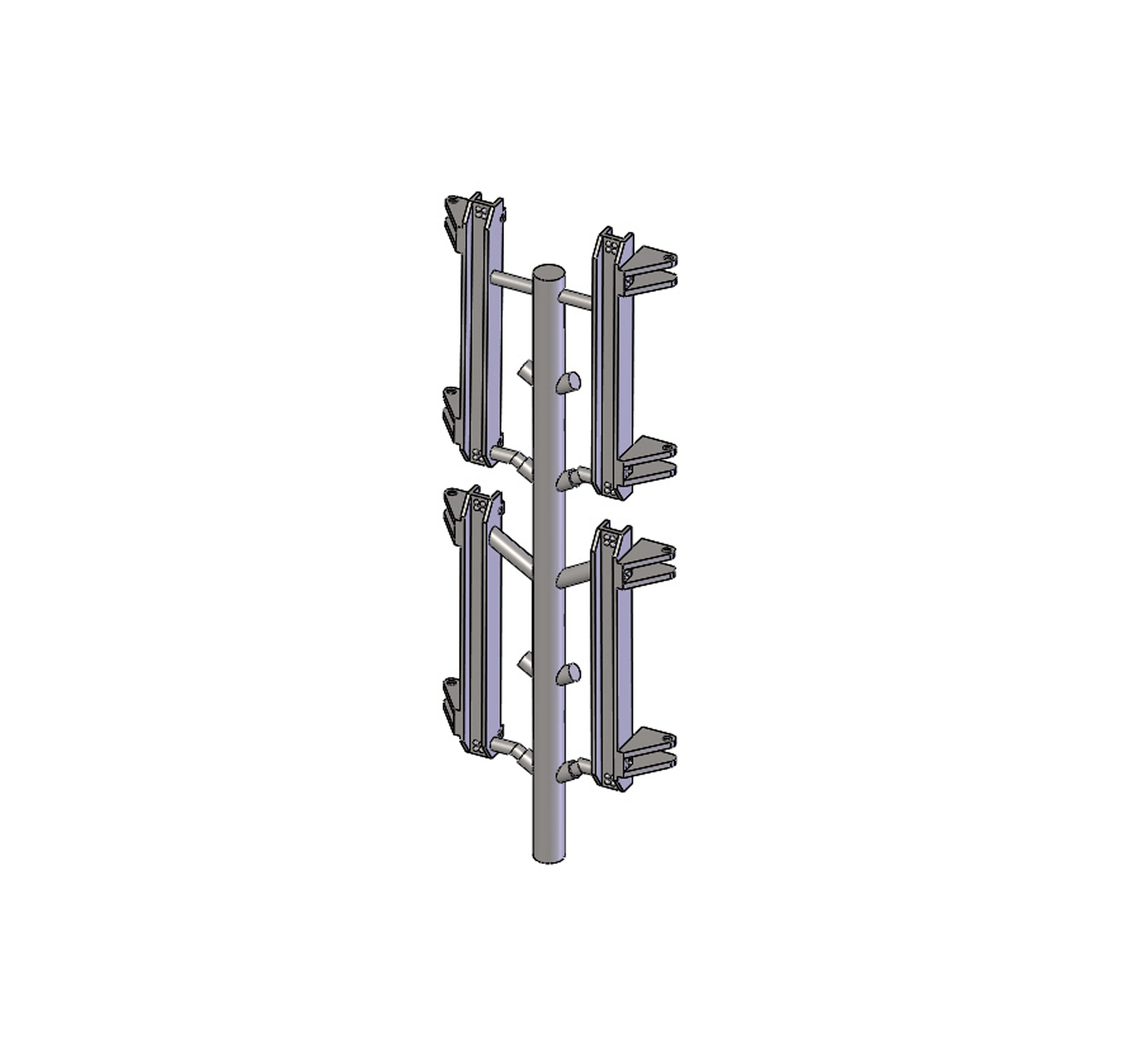

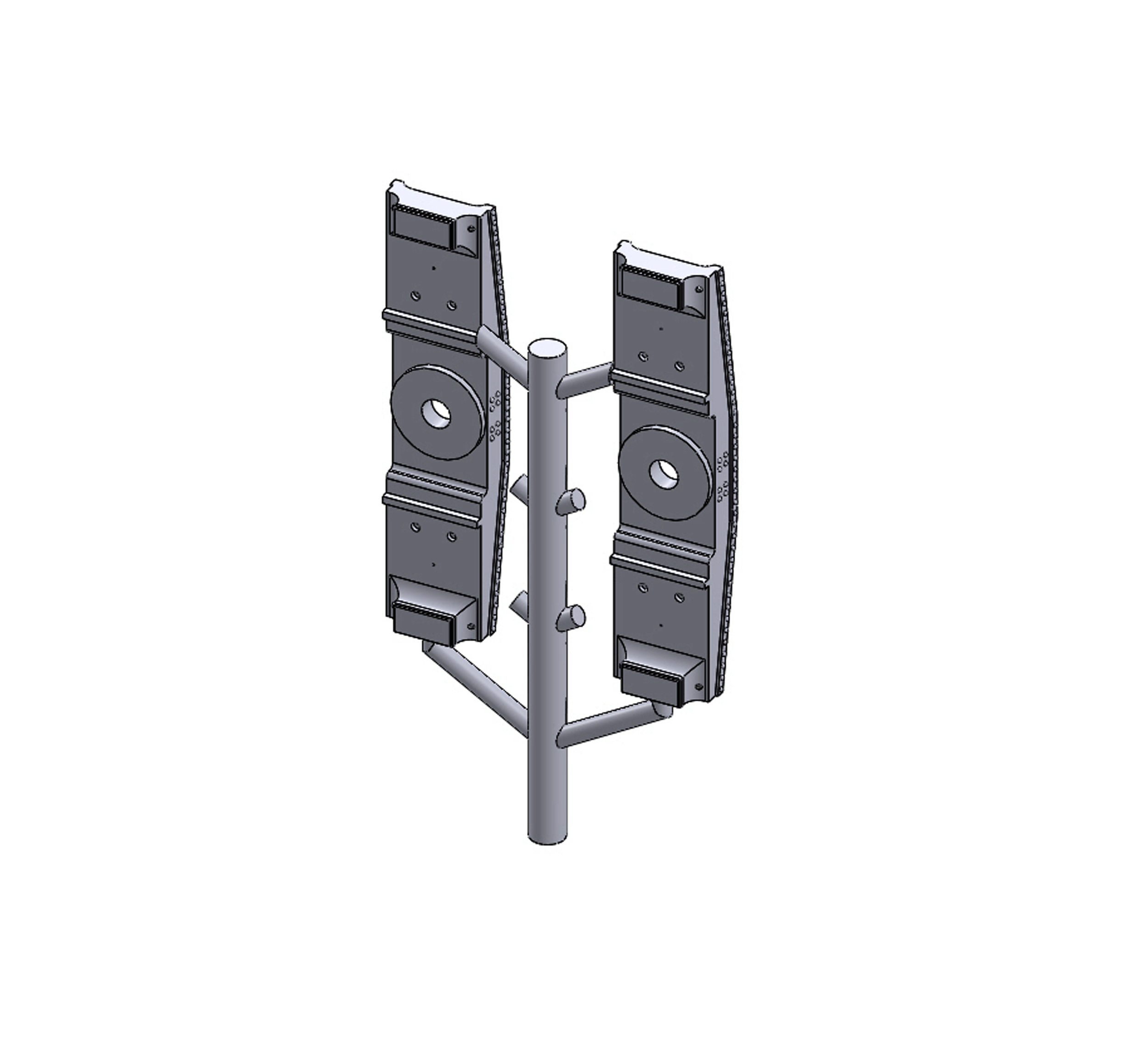

In September 2024 spent some significant time making new trees, printing them and confirming sizes before printing for lost wax brass casting. These are Solidworks screen shots.

$Description: C:\Users\blane\Documents\3DModelTech Website\3D_Model_Tech_PRR_2D5P2_Truck_Photos\PRR_2D5P2_Truck_Photos_5 small.jpg$ $Description: C:\Users\blane\Documents\3DModelTech Website\3D_Model_Tech_PRR_2D5P2_Truck_Photos\PRR_2D5P2_Truck_Photos_6 small.jpg$ $Description: C:\Users\blane\Documents\3DModelTech Website\3D_Model_Tech_PRR_2D5P2_Truck_Photos\PRR_2D5P2_Truck_Photos_7 small.jpg$
